HY217

Unique wear resistance formula design
HY217
HY217
Product Overview

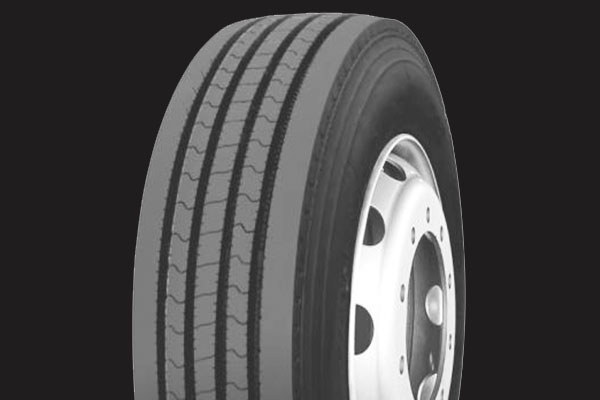

Pattern Characteristic


● The design of four straight grooves provides good high-speed performance, excellent handling performance and drainage performance.
● The horizontal sipes on the pattern provide good grip performance and facilitate tire heat dissipation. The unequal tread intercept design provides tire ground noise.
● The rubber protrusions at the bottom of the groove effectively improve the self-cleaning performance of the tire.
● The deep fine grooves in the pattern are good for the heat dissipation of the tire, and the small sipes on the edge of the pattern groove reduce the irregular wear of the shoulder when the tire is running at high speed.

Accepatable Tyre Position


Technical Specifications

Tire Size11R22.212R22.5315/80R22.5295/80R22.5
Ply16182018
Load index148/145152/149
156/150152/149
Maximum
load(kg)
Single tire3150355040003550
Double tire290032503350
3250
Corresponding air
pressure(kpa)
Single tire850930850900
Double tire850930850900
Measurement
Wheel rim
8.259.009.009.00
Allow using
wheel rim
7.508.259.758.25
Decorative
pattern
Depth(mm)
161616.516
New tire
design
size(mm)
Section width279300312298
Outer diameter1054108510761044
